1 Set 302-2 Engine Oil Pan Aluminum,Satin LS Swap Retrofit Rear Sump Low Profile Oil Pan Conversion Kit Fits for Chevy Nova Camaro GM LS1 LS2 LS3 LS6 4.8L 5.3L 6.0L 6.2L 6.5L

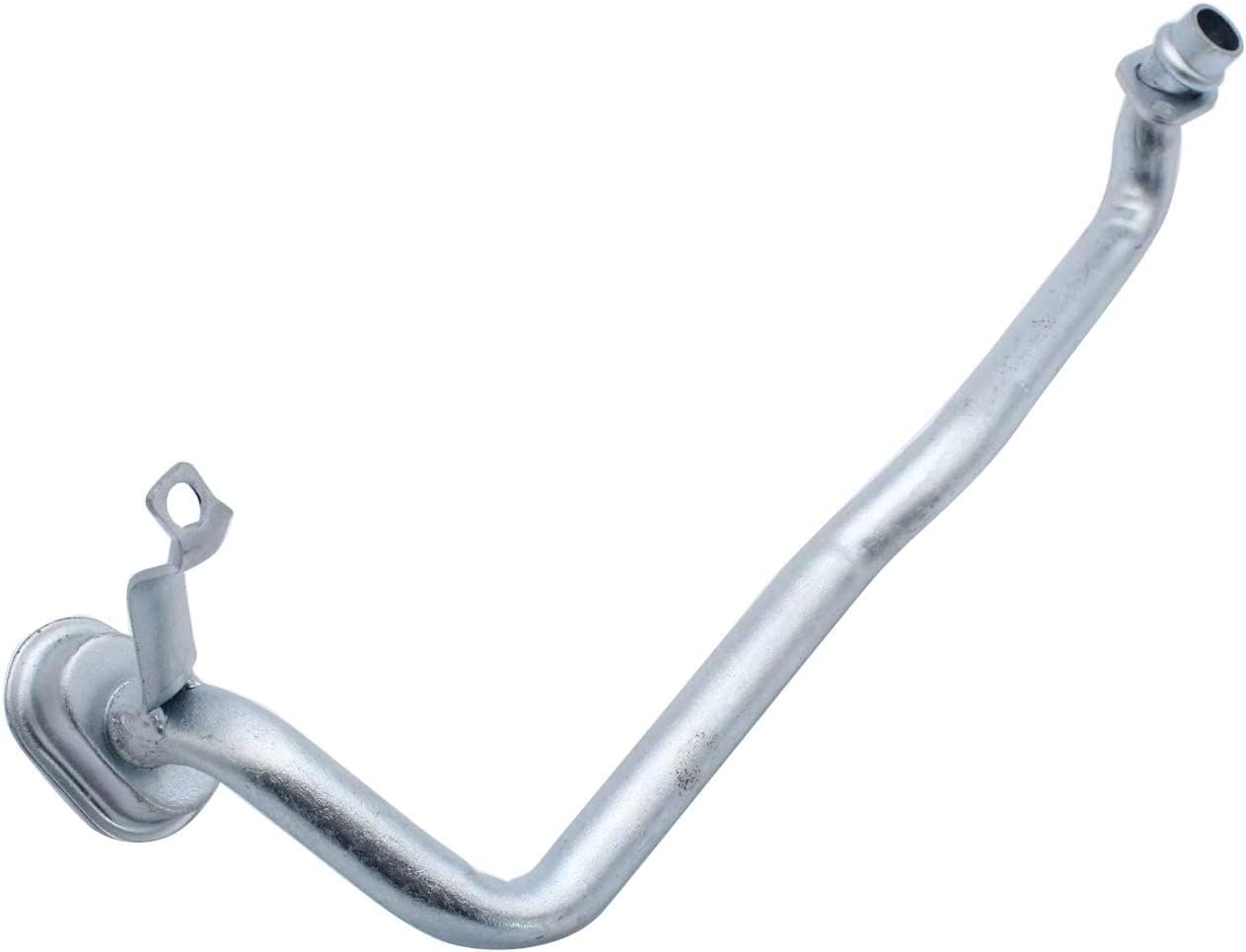

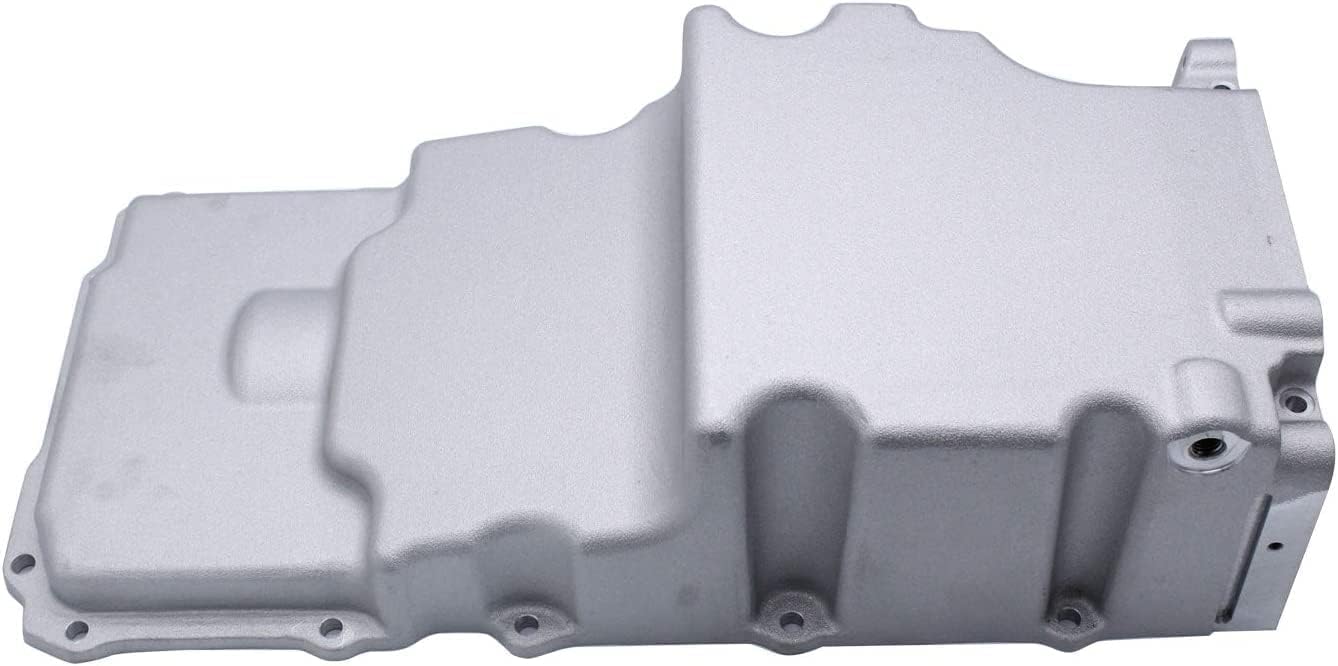

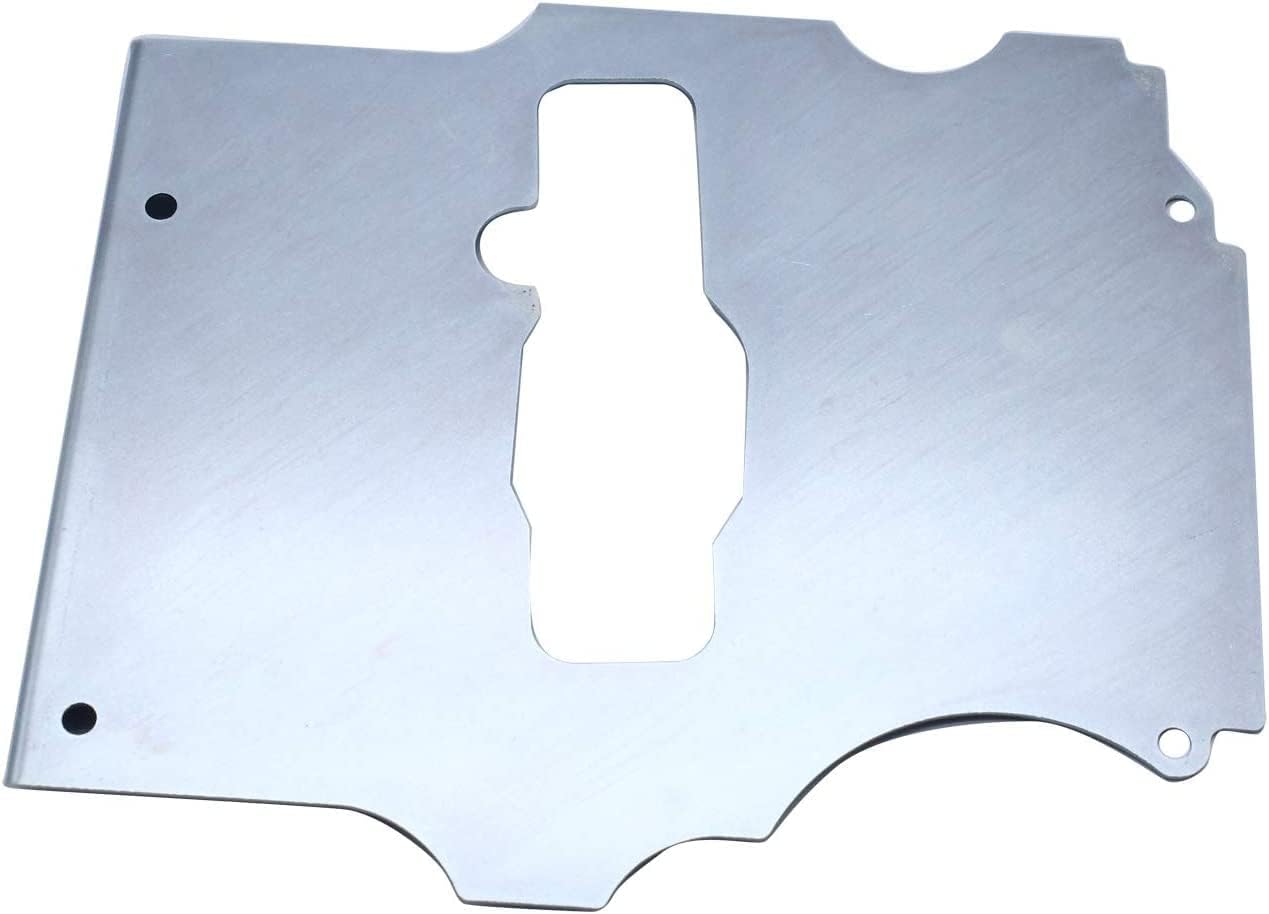

Specification: Condition:100% Brand New Colour:As the picture show Design: Low profile oil pan Sump Location: Rear Sump Style: Wet Oil Pan Finish: Natural Oil Pan Material: Aluminum Interchange Number: 302-2 Sump Oil Capacity: 5.7 Quarts Total Oil Capacity with stock oil filter: 6.2 Quarts Maximum stroke with OE Rod: 3.62" Package includes: 1 x Oil Pan 1 x Oil Pan Gasket 1 x Sump Baffle 1 x Pick-up Tube 1 x Sump Plug 1 x Oil Filter Stud 1 x Oil Passage Cover 1 x O-Ring Bolts (As Picture).

• ①Fitment:1967-1969 Chevrolet Camaro;1967-1969 Pontiac Firebird;1968-1974 Chevrolet Nova;1968-1974 Chevrolet Ventura;1968-1974 Chevrolet Omega;1982-1992 F-body;1978-1987 G-body;1964-1972 A-body;LS Engine LS1 LS6 LS2 LS3 LS9 4.8L 5.3L 5.7L 6.0L 6.2L Motor.
• ②Unique design:Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube;Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.
• ③Size:Sump Depth:5.46";Sump Oil Capacity: 5.7 Quarts;Total Oil Capacity with stock oil filter: 6.2 Quarts;Maximum stroke with OE Rod: 3.62".
• ④Premium Aluminum materials:Made of quality Aluminum materials, Corrosion resistant, Durable and long lasting.
• ⑤Note:Oil pan 302-2 may not be used with LS7 engines or “stroker” engines greater than 3.62”.
